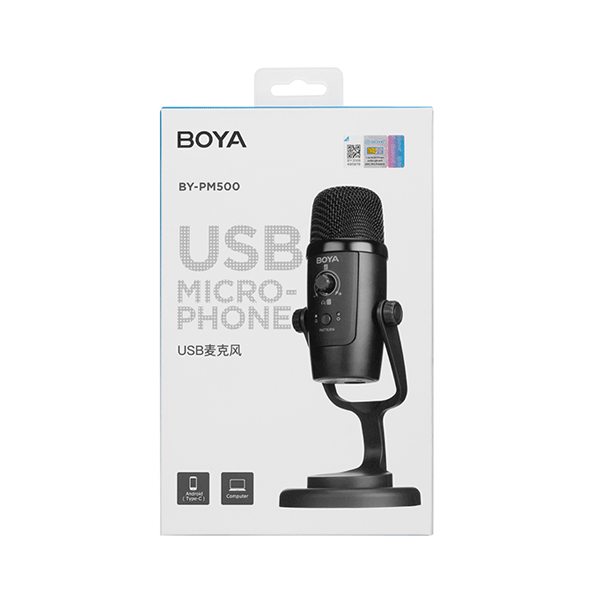

Boya BY-PM500 USB Condenser Microphone / BY-PM500

The PM500 USB microphone is a compact, high-quality, and easy-to-use USB microphone. It's designed to capture broadcast-quality audio and deliver it to Android mobile devices and computers. It can be used for home studio recording, podcasting, video conferencing, vocals, instruments, recording, and much more. The built-in 3.5mm headphone jack allows you to monitor the audio without any latency.

- Compatible with Windows and Mac computers, and most devices with a Type-C port.

- Smooth and wide-spectrum sound response.

- Two separate polarity (direction) settings: cardioid and omnidirectional.

- 24-bit / 48 kHz resolution.

- Mute function.

- 3.5mm headphone jack.

- Uninterrupted live streaming.

Cardioid and omnidirectional polar patterns easily meet all your needs.

The BY-PM500 meets all your demands in different usage scenarios with its freely switchable cardioid and omnidirectional polar patterns. The omnidirectional polar pattern is an excellent choice when you want to capture the entire sound from all directions. Conversely, switching to the cardioid polar pattern is better for emphasizing sound from one direction.

Extremely easy to use thanks to an integrated multi-function button.

With its integrated multi-function button, the BOYA BY-PM500 makes your user experience easier and more convenient. With just one control button, you can easily perform precise control of the mute function, headphone volume, and recording volume.

Real-time monitoring.

With a specially designed headphone amplifier and accurate level processing model, the BY-PM500 lets you monitor audio with zero latency.

This is not just a USB microphone.

With its removable table stand and recessed threaded hole designs, it can be used with a bracket to handle various complex and crowded usage scenarios.

Polarity (directional characteristic): Omnidirectional and Cardioid (heart-shaped)

Frequency Range: 20-20,000Hz

Sensitivity: -36dB (0dB=1V/Pa, 1kHz 1Pa)

Power Consumption: 5V/60mA

Signal-to-Noise Ratio: 80dB

SPL: 110dB

Microphone Gain Control: 0-42dB

Sampling Frequency: 48kHz

Bit Depth: 24-bit

USB Connector: Type-C

Dimensions: 100x84x226.7mm

Weight: 703g

Headphone Amplifier Technical Details:

Impedance (internal resistance): 16 ohms

Power output (RMS): 58mW x 2

Distortion: 0.01%

Frequency Response: 20-20000Hz

Signal-to-Noise Ratio: 102dB

Headphone Volume Control: 0-27dB

Compatibility: Windows or Mac notebooks and desktop computers, Type-C smartphones and tablets with OTG capability.

Using with a Phone: When using with your phone, connect the microphone to your phone's compatible USB cable before opening your camera or audio recording program. On some phones, select the "detect USB device" option in the connection settings. Some phones may not detect the microphone during video recording; in this case, you may need to install a separate camera application. For example, you can download the OPENCAMERA app for free from the Google Play Store, configure the microphone settings, and use it on many Android phones.
